Fit & Forget Gear Box

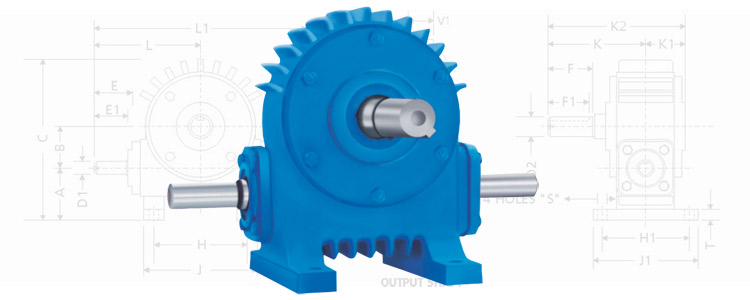

YGP-H

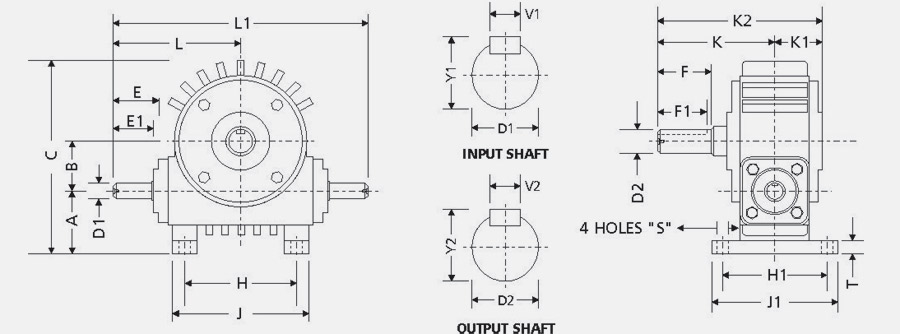

Technical Specification

Size A B C D1 E E1 D2 F F1 H H1 J J1 L L1 K K1 K2 T V1 Y1 V2 Y2 S Wt. (kg) Grs. Qty.
1.75" 60 44.45 182 16.00 35 30 22.00 50 45 120 95 150 128 120 240 116 50 166 13 5 18.5 6 25 11 10.00 350 gm.
2.00" 64 50.80 200 16.00 40 35 25.00 55 50 114 106 140 128 130 260 120 50 170 13 5 18.5 8 29 11 12.00 500 gm.
2.25" 70 57.15 220 22.00 50 45 25.00 60 55 105 105 150 140 155 310 127 53 180 13 6 25 8 29 11 15.00 600 gm.
2.50" 75 63.50 232 22.00 55 50 28.00 60 55 120 140 160 174 160.5 321 130 55 185 18 6 25 8 32 11 19.00 900 gm.
3.00" 102 76.20 283 25.00 55 50 38.00 67 65 140 160 178 190 170 340 148 67 215 18 8 28 10 43 14 27.00 1.300 kg.
3.50" 105 88.90 315 32.00 55 50 38.00 67 65 140 170 210 200 182 364 150 75 225 18 10 37 10 43 14 30.00 2.000 kg.

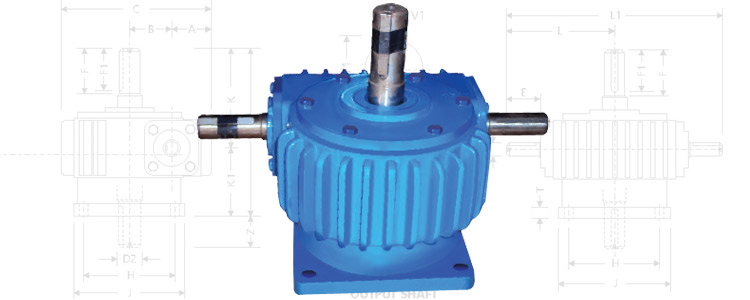

YGP-V

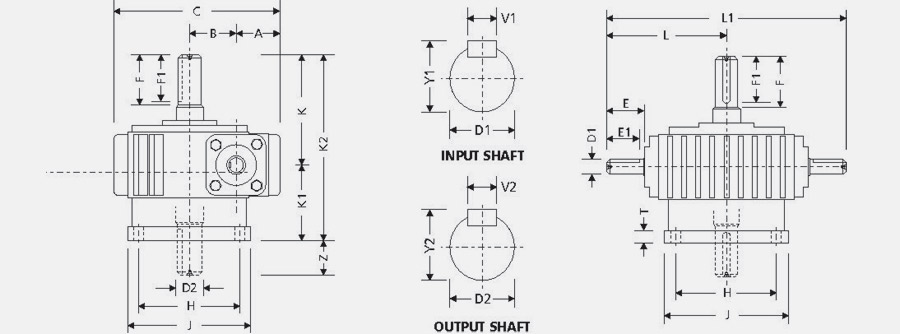

Technical Specification

Size A B C D1 E E1 D2 F F1 H J L L1 K K1 K2 Z T V1 Y1 V2 Y2 S Wt.(kg.) Grs. Qty.
1.75" 45 44.45 167 16.00 35 30 22.00 50 45 106 135 182 240 116 80.5 196.5 35.5 13 5 18.5 6 25 11 10.00 350 gm.
2.00" 47 50.80 180 16.00 40 35 25.00 55 50 110 135 130 260 120 82 202 38 13 5 18.5 8 29 11 12.00 500 gm.
2.25" 54 57.15 204 22.00 50 45 25.00 60 55 125 150 155 310 127 87 214 40 13 6 25 8 29 11 14.00 600 gm.
2.50" 54 63.50 210 22.00 55 50 28.00 60 55 124 150 160.5 321 130 88 218 42 18 6 25 8 32 11 14.00 900 gm.
3.00" 66 76.20 245 25.00 55 50 38.00 67 65 170 240 170 340 148 101.5 249.5 46.5 18 8 28 10 43 14 29.00 1.600 kg.
3.50" 69 88.90 280 32.00 55 50 38.00 67 65 212 260 170 364 150 127.5 277.5 22.5 18 10 37 10 43 18 34.00 2.500 kg.

Product Range

DUE TO CONTINUOUS DEVELOPMENTS, DIMENSIONS & OTHER DETAILS IN THIS CATALOG MAY CHANGE WITHOUT NOTICE.

Normal Ratio Approx Output Speed R.P.M CAPACITY 1500 R.P.M
SIZE OF UNIT (CENTRE DISTANCE)
1.125" 1.75" 2.00" 2.25" 2.50" 3.00" 3.50" 4.00" 5.00" 6.00" 7.00" 8.00" 9.00" 10.00" 12.00"
5:1 300 INPUT OUTPUT
TORQUE KG.M		 0.59
1.45		 1.65
3.70		 2.80
7.25		 3.20
8.50		 4.00
10.50		 7.10
17.50		 11.20
27.50		 15.50
37.00		 25.70
61.00		 41.60
100.00		 60.00
137.00		 78.00
180.00		 92.00
220.00		 104.00
242.00		 ---
---
7.5:1 200 INPUT OUTPUT
TORQUE KG.M		 0.46
1.60		 1.25
4.25		 2.00
7.40		 2.90
9.00		 3.40
11.50		 6.60
19.30		 9.35
28.00		 11.55
39.50 		20.10
73.00		 32.00
116.00		 51.00
173.00		 64.00
220.00		 80.00
262.00		 92.00
310.00		 123.00
450.00
10:1 150 INPUT OUTPUT
TORQUE KG.M		 0.42
1.60		 1.18
5.40		 1.86
9.50		 2.40
10.50		 3.15
13.00		 4.80
21.50		 7.00
32.00		 10.05
44.00		 17.80
86.00		 27.00
128.00		 37.00
171.00		 48.00
218.00		 66.00
305.00		 75.00
330.00		 105.00
510.00
15:1 100 INPUT OUTPUT
TORQUE KG.M		 0.32
1.80		 0.98
6.35		 1.55
9.70		 2.00
11.00		 2.45
14.50		 3.50
26.00		 6.20
38.50		 7.50
46.00		 14.00
85.00		 21.00
150.00		 27.00
180.00		 43.00
280.00		 55.00
355.00		 66.00
430.00		 86.00
600.00
20:1 75 INPUT OUTPUT
TORQUE KG.M		 0.25
1.90		 0.80
5.70		 1.37
10.80		 1.80
13.00		 2.25
17.00		 3.15
25.00		 4.50
36.50		 6.60
51.00		 10.10
94.00		 17.50
153.00		 24.00
215.00		 33.00
290.00		 39.00
344.00		 51.00
435.00		 70.00
650.00
25:1 60 INPUT OUTPUT
TORQUE KG.M		 0.23
2.00		 0.70
6.20		 1.20
11.00		 1.50
14.00		 2.00
18.50		 2.60
27.50		 3.90
41.00		 5.60
52.00		 8.40
93.00		 15.20
165.00		 20.70
218.00		 28.00
302.00		 33.00
382.00		 44.00
450.00		 63.00
680.00
30:1 50 INPUT OUTPUT
TORQUE KG.M		 0.18
1.90		 0.58
6.40		 0.97
10.50		 1.25
13.50		 1.70
17.00		 2.20
27.50		 3.40
43.00		 4.80
55.00		 7.00
98.00		 13.20
170.00		 18.50
238.00		 24.00
310.00		 28.00
370.00		 38.00
481.00		 58.00
750.00
40:1 37.5 INPUT OUTPUT
TORQUE KG.M		 0.13
1.70		 0.51
6.30		 0.78
10.00		 1.05
13.80		 1.45
17.00		 1.95
28.00		 2.80
40.00		 3.70
55.00		 6.20
94.00		 10.00
167.00		 14.80
241.00		 20.00
318.00		 24.00
410.00		 35.00
544.00		 49.00
820.00
50:1 30 INPUT OUTPUT
TORQUE KG.M		 0.11
1.60		 0.38
5.50		 0.63
9.50		 0.90
11.80		 1.20
16.00		 1.60
26.00		 2.20
36.00		 3.00
51.00		 5.10
98.00		 8.00
164.00		 12.00
234.00		 17.00
330.00		 19.00
390.00		 27.00
518.00		 40.00
830.00
60:1 25 INPUT OUTPUT
TORQUE KG.M		 0.09
1.50		 0.33
4.60		 0.51
8.50		 0.75
10.50		 1.00
13.00		 1.25
23.00		 1.70
35.00		 2.40
52.00		 4.50
101.00		 6.20
164.00		 10.80
235.00		 14.00
320.00		 17.00
380.00		 23.00
510.00		 36.00
830.00
70:1 21 INPUT OUTPUT
TORQUE KG.M		 0.07
1.40		 0.21
4.50		 0.43
7.50		 0.51
10.00		 0.70
12.50		 1.05
21.00		 1.50
29.00		 2.00
51.00		 4.10
99.00		 5.40
156.00		 8.50
220.00		 12.00
308.00		 13.50
350.00		 19.00
484.00		 28.00
780.00
Normal Ratio Approx Output Speed R.P.M CAPACITY 1000 R.P.M
SIZE OF UNIT (CENTRE DISTANCE)
1.125" 1.75" 2.00" 2.25" 2.50" 3.00" 3.50" 4.00" 5.00" 6.00" 7.00" 8.00" 9.00" 10.00" 12.00"
5:1 200.00 INPUT OUTPUT
TORQUE KG.M		 0.48
1.68		 1.25
4.35		 2.20
8.20		 2.60
9.2		 3.20
12.00		 5.20
19.5		 8.20
32.00 		11.80
40.00		 20.20
73.00		 30.20
109.00		 43.00
162.00		 60.00
210.00		 65.00
240.00		 78.00
285.00		 110.00
480.00
7.5:1 1.33.3 INPUT OUTPUT
TORQUE KG.M		 0.43
1.90		 1.10
5.00		 1.55
8.30		 2.20
10.1 		2.85
12.9		 5.30
23.00		 8.10
34.30 		8.20
46.00		 16.75
86.00		 23.00
130.00		 38.00
185.00 		50.00
245.00		 54.00
300.00		 71.00
325.00		 102.00
495.00
10:1 100.00 INPUT OUTPUT
TORQUE KG.M		 0.34
2.05		 0.95
6.00		 1.40
11.00		 2.00
12.3 		2.63
15.5		 4.20
26.00		 5.50
36.50		 7.70
52.10		 14.60
102.00 		21.00
147.00 		30.00
205.00 		38.00
250.00		 50.00
320.00 		60.00
380.00 		89.00
610.00
15:1 66.7 INPUT OUTPUT
TORQUE KG.M		 0.23
2.00 		0.75
6.75 		1.17
11.1 		1.60
12.5		 2.10
16.8 		3.10
31.00		 4.80
45.60 		5.60
57.50 		10.00
100.00 		16.00
160.00		 21.00
208.00 		30.00
292.00 		38.00
355.00		 49.00
445.00 		68.00
700.00
20:1 50.0 INPUT OUTPUT
TORQUE KG.M		 0.21
2.10 		0.59
6.30 		1.13
12.8		 1.45
15.2		 1.80
19.8 		2.60
30.70		 4.00
43.70 		4.80
63.30 		7.80
103.00		 12.50
170.00		 19.00
230.00 		24.00
296.00 		31.00
380.00		 40.00
505.00 		57.00
790.00
25:1 40.0 INPUT OUTPUT
TORQUE KG.M		 0.18
2.24 		0.53
6.80		 0.95
12.6		 1.10
16.1		 1.55
21.00		 2.40
32.80		 3.50
49.00		 4.01
63.00		 6.08
108.00		 11.00
178.00		 16.00
238.00 		21.00
325.00 		27.00
390.00 		34.00
505.00 		50.00
790.00
30:1 33.3 INPUT OUTPUT
TORQUE KG.M		 0.15
2.00		 0.50
7.10		 0.75
12.2		 0.90
15.80 		1.30
18.9 		2.00
33.3 		3.05
52.00		 3.60
62.50 		6.00
105.00		 10.00
182.00 		14.00
250.00 		19.00
340.00 		24.00
421.00 		30.00
560.00		 45.00
880.00
40:1 25.0 INPUT OUTPUT
TORQUE KG.M		 0.10
1.80 		0.40
7.00 		0.60
11.5 		0.80
16.00 		1.18
20.1 		1.55
34.80 		2.50
50.90 		2.80
66.00 		4.60
103.00 		7.20
181.00 		10.00
247.00 		14.00
338.00 		20.00
439.00 		26.00
590.00 		38.00
910.00
50:1 20.0 INPUT OUTPUT
TORQUE KG.M		 0.09
1.75		 0.33
6.10		 0.50
10.20 		0.60
13.90		 0.82
17.8 		1.30
31.50 		1.90
43.00		 2.40
65.50 		4.00
110.00 		6.50
178.00 		8.50
248.00 		12.50
351.00 		16.00
430.00 		20.00
580.00 		32.00
930.00
60:1 16.7 INPUT OUTPUT
TORQUE KG.M		 0.07
1.65		 0.30
5.00		 0.40
9.40		 0.55
10.70 		0.75
14.00		 1.05
26.40 		1.50
41.50		 1.95
63.30 		3.50
108.00		 5.50
179.00 		7.80
251.00 		10.00
342.00 		12.00
417.00 		17.00
570.00		 28.00
920.00
70:1 14.3 INPUT OUTPUT
TORQUE KG.M		 0.06
1.55 		0.20
4.70 		0.30
8.50 		0.40
10.20		 0.52
14.00 		0.97
24.00 		1.30
34.30 		1.75
62.60 		3.20
103.00 		4.90
175.00 		7.00
235.00 		9.00
320.00		 10.00
380.00 		13.50
535.00 		22.00
910.00
Normal Ratio Approx Output Speed R.P.M CAPACITY 750 R.P.M
SIZE OF UNIT (CENTRE DISTANCE)
1.125" 1.75" 2.00" 2.25" 2.50" 3.00" 3.50" 4.00" 5.00" 6.00" 7.00" 8.00" 9.00" 10.00" 12.00"
5:1 150 INPUT OUTPUT
TORQUE KG.M		 0.41
1.85		 1.05
4.75		 1.95
9.2		 2.45
11.00		 3.05
14.60		 4.40
21.00		 6.30
34.00		 10.30
43.00		 17.00
72.00		 24.00
105.00		 35.50
160.00		 47.00
215.00		 53.00
220.00		 62.00
280.00		 --
--
7.5:1 100 INPUT OUTPUT
TORQUE KG.M		 0.36
2.05		 0.90
5.4		 1020
9.25		 1.90
12.10		 2.50
15.30		 4.00
23.50 		6.10
37.00		 7.60
47.00		 14.50
92.00 		20.00
125.00 		31.00
190.00 		43.00
270.00		 45.00
285.00		 60.00
380.00 		--
--
10:1 75 INPUT OUTPUT
TORQUE KG.M		 0.29
2.20		 0.80
6.5		 1.15
12.00 		10.75
13.70 		2.10
16.70 		3.20
28.00 		4.40
41.00 		6.60
53.00 		12.00
105.00 		16.00
150.00 		24.00
210.00		 32.00
282.00 		36.00
335.00		 49.00
425.00		 76.00
700.00
15:1 50 INPUT OUTPUT
TORQUE KG.M		 0.22
2.18		 0.65
7.5		 1.05
11.50 		1.30
13.50 		1.45
17.70 		2.40
32.00 		3.90
48.50 		4.80
58.00 		8.00
110.00 		12.50
170.00 		16.00
215.00 		24.00
320.00 		28.00
400.00 		39.00
500.00 		53.00
710.00
20:1 37.50 INPUT OUTPUT
TORQUE KG.M		 0.16
2.22		 0.50
6.90		 1.00
13.60 		1.15
16.40 		1.40
21.00 		2.10
30.50 		3.00
46.50 		4.00
62.00 		6.00
108.00 		10.00
175.00		 14.00
245.00 		20.00
330.00 		22.00
410.00 		32.00
550.00 		48.00
850.00
25:1 30 INPUT OUTPUT
TORQUE KG.M		 0.14
2.40		 0.44
7.5 		0.80
13.30 		1.00
17.30 		1.20
22.90 		1.80
32.50 		2.70
52.00 		3.50
62.00 		5.40
117.00 		8.50
178.00 		12.50
255.00 		17.00
345.00 		20.00
425.00 		27.00
560.00 		40.00
850.00
30:1 25 INPUT OUTPUT
TORQUE KG.M		 0.12
2.20		 0.40
7.95 		0.65
12.00 		0.80
16.50		 1.00
19.80 		1.60
34.30 		2.40
55.00 		3.10
68.00 		5.00
110.00 		7.50
180.00 		11.00
260.00 		15.00
348.00 		18.00
460.00 		23.00
570.00 		37.00
900.00
40:1 18.75 INPUT OUTPUT
TORQUE KG.M		 0.09
1.95		 0.30
7.70		 0.50
11.70		 0.60
16.20 		0.85
20.10 		1.20
36.70 		1.80
54.00 		2.30
68.00 		4.00
112.00 		6.40
180.00 		8.30
260.00 		11.00
380.00 		13.00
465.00 		20.00
650.00 		30.00
930.00
50:1 15 INPUT OUTPUT
TORQUE KG.M		 0.07
1.90		 0.28
6.70		 0.40
10.60		 0.50
12.70		 0.56
18.70		 0.90
31.60		 1.30
46.50		 1.90
69.00 		3.50
118.00		 5.30
182.00 		7.70
265.00 		10.00
395.00 		11.00
460.00 		17.00
630.00 		26.00
1010.00
60:1 12.50 INPUT OUTPUT
TORQUE KG.M		 0.06
1.71 		0.20
5.4		 0.30
9.00		 0.36
11.00		 0.43
15.00		 0.90
28.00 		1.00
42.00		 1.80
70.00 		3.00
115.00		 4.20
170.00		 7.00
280.00 		8.50
375.00 		10.00
445.00 		14.00
620.00 		20.00
1000.00
70:1 10.70 INPUT OUTPUT
TORQUE KG.M		 0.05
1.55		 0.18
5.1		 0.27
8.90 		0.33
11.20 		0.37
14.80 		0.80
27.00 		0.90
38.00 		1.40
64.00 		2.50
112.00 		3.90
165.00 		5.20
245.00 		7.20
330.00 		8.00
400.00 		11.00
570.00 		18.00
980.00
